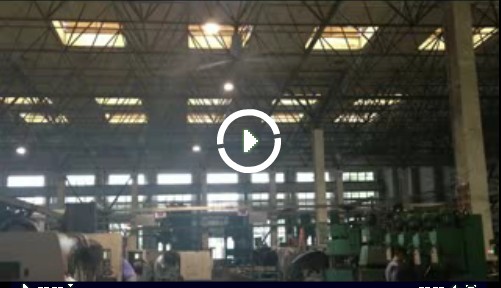

照片視頻功能
技術規格

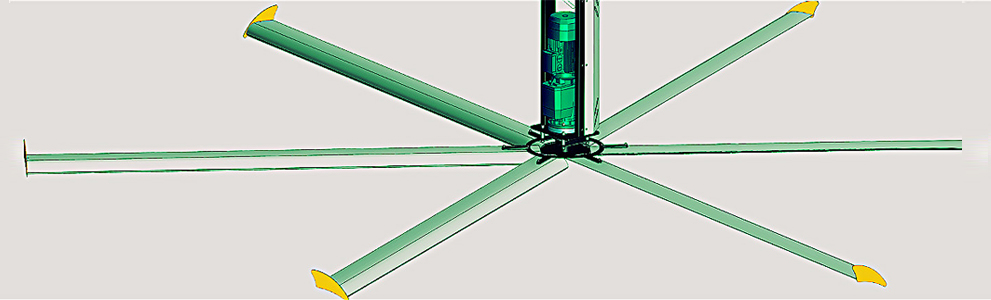

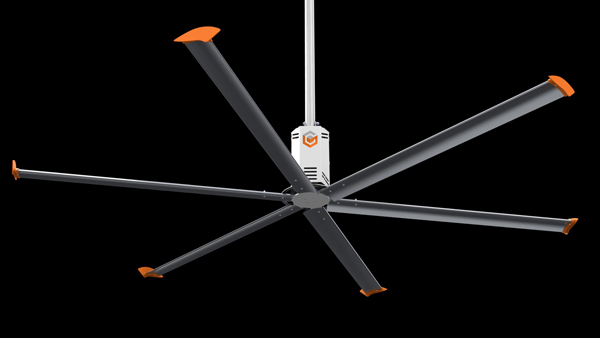

| 扇葉數量（Number of airfoils) | 6片 Six patented airfoils |
| 扇葉表面處理(Airfoil finish) | 噴砂陽極氧化處理 Sand blasting and anodic oxidation treatment |
| 驅動設備(Motor) | 原裝進口德國倫茨或意大利邦飛利電機，絕緣等級F，大扭矩 Original imoprted Germany Lenze or Italian Bonfiglioli motor, F insulation levels,high pulling torque. |
| 功 率 (Power) | 1.5KW/2.2KW |
| 額定電壓 (Voltage rating) | 400/230V |
| 滿載電流 (Full-road current) | 5.22/9.2A |
| 吊裝重量 (Weight) | 120KG |
| 轉速 (Rotate speed) | 0-58RPM |
| 風 速 (Air speed) | 約0~4.3 m/s Around 0~4.3 m/s |
| 風 量 (Displacement) | 10800CMM |
| 最大擴散面積 (Max diffusion area) | 1800M2 |
